IM3 Options & Applications
Defender IM3, Managing Impacts in Real Time
- Installs in approximately 1.5 hours
- Does not de-rate or require an OEM modified capacity plate
- Does not require maintenance and is easy to self-program and adapt
- ‘High and Low’ Impact system is an intuitive approach to operator safety
- Guaranteed not to interrupt productivity of the operation
- Real Time Information, Operator ID, Time and Force of Impact (when it happens)
- System does not require monthly fees
- Built specifically for Lift Trucks
- IVDT manufactures to an IP65 rating suitable for the toughest environments
- Modular design engineering means more options and customization
- 2 Year Warranty
- Rugged, Reliable, Accurate
| DEFENDER IM3 |
|---|

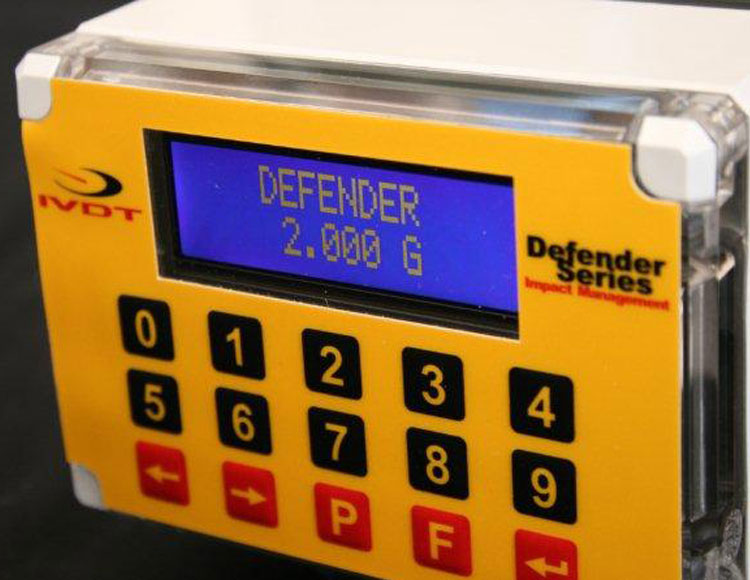

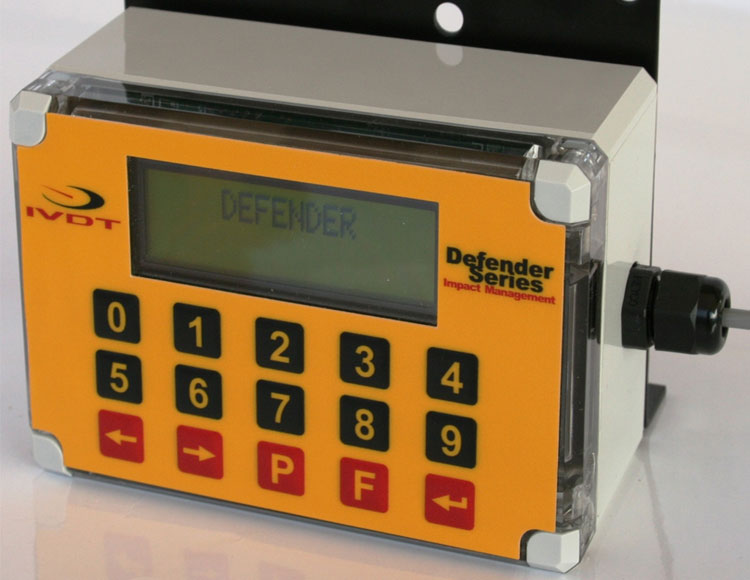

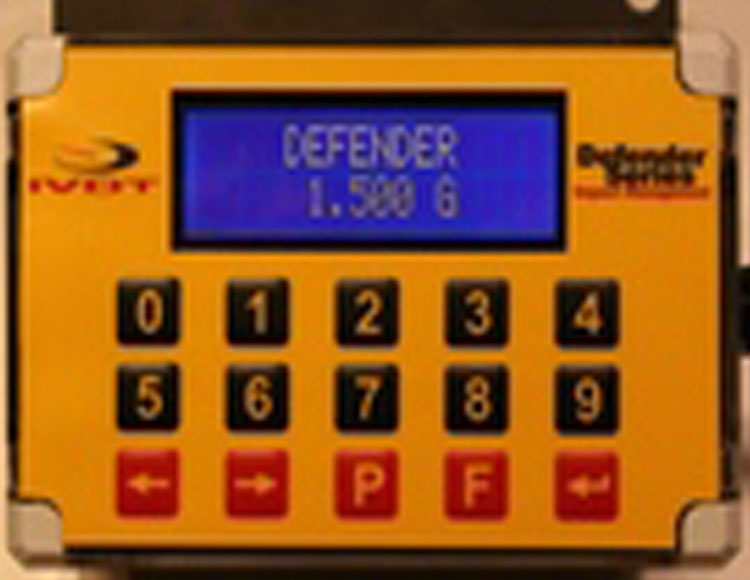

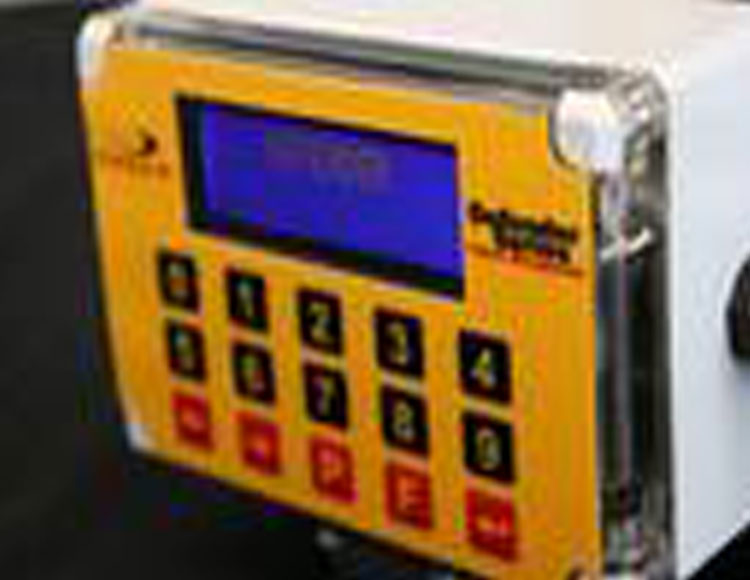

| Compact 4” x 2” x 3.5” Digital Indicator |
| Easy to Read LCD Display |
| Real Time Clock |
| IP65 Harsh Environment Protective Enclosure |

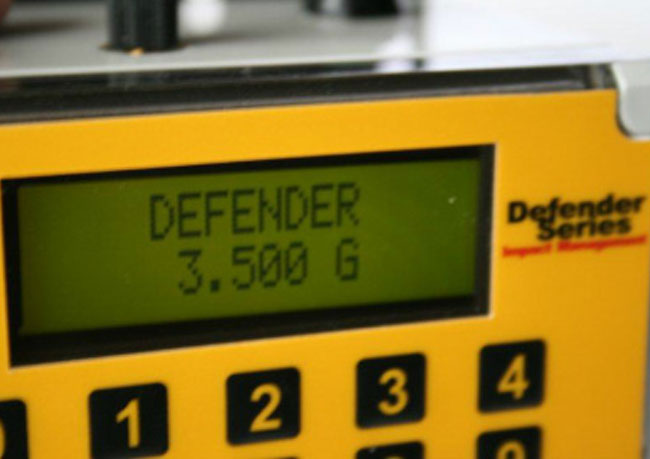

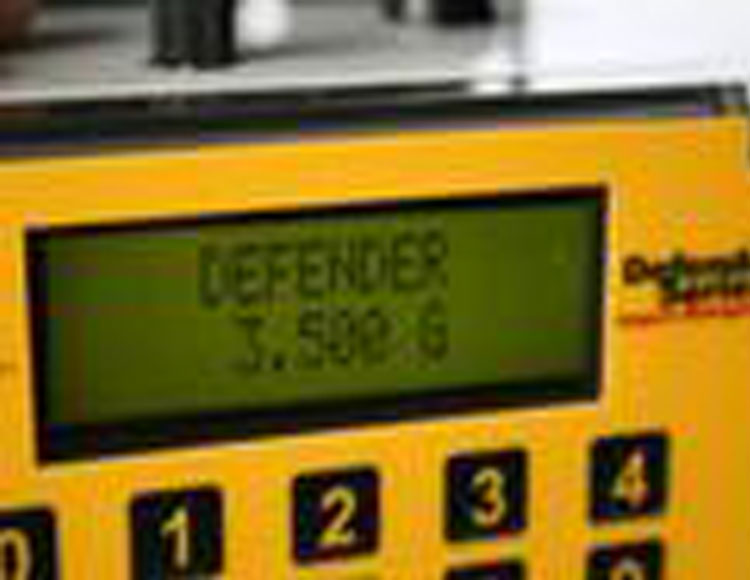

| High and Low Impact Display |
| Operator ID Programming |
| ‘Black Box’ Operating Concept, Automatic Tamper Proof Data Storage |
| Impact Range .5 to 16 G's |
| Real Time Communication with no Monthly Fees |
| Safety and Utilization Data Available |
| Audible Alarm Available |
| Self Programmable |
| Universal Power Supply from 12 to 60 VDC |
| Proprietary and Modular Software for Easy Application Customization |
| 2 Year Warranty |
| DIGITAL INDICATOR | |
|---|---|
| Housing | ABS NEMA Type 4X, size 120 x 80 x 55 mm |
| Real Time Clock | With battery backup |
| Microprocessor | 16 bit |
| Flash Memory | 64M |
| 10 Bit Analog Channels | 2 |
| Digital Inputs | 2 |
| Display | LCD display 2 x 16 characters, super twist, high contrast with LED backlight |
| LCD Display Size | 68 x 27 x 11 mm |
| LCD optimum viewing angle | +/- 30 degree from operator’s line of sight |
| Operating Voltage | 12 to 60 V DC |
| Current Consumption | <65 mA |
| System Set Up | Password protection |
| Communication Interface | Bluetooth V2.01 |
| Communication Interface | USB V2.0 compliant |
| RF module, long distance | 900 MHz |
| Alphanumeric keypad | 16 keys membrane keypad |
| Keypad | With functions overlay |
| Inputs | Four analog inputs |
| Language | English and French |

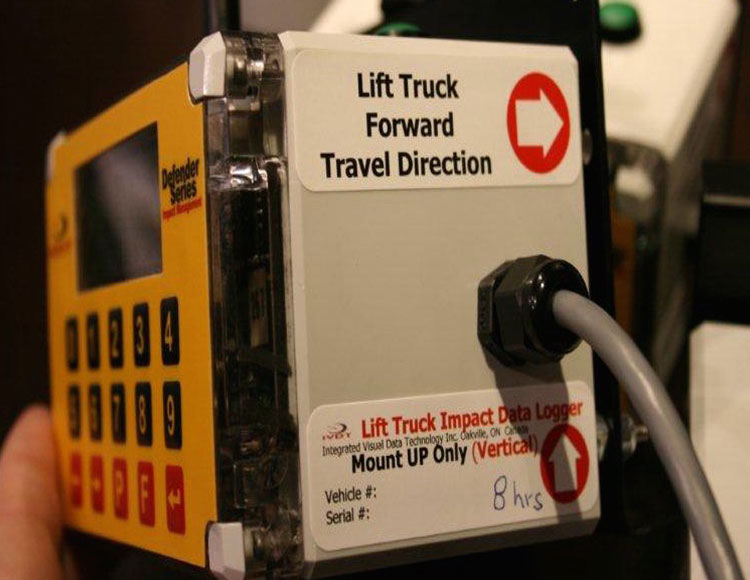

| Connector | Liquid tight straight thru fitting for electrical cable |
| Operating Temperature With Standard LCD Display | -20°C to + 50°C |
| Operating Temperature With Extended Temp. LCD | -20°C to + 70°C (* special order) |
| Storage Temperature | -40°C to + 80°C |
| Output Relay | Contact rating 1A, SPDT |
| Internal Buzzer | 60 dB at 30 cm distance |
| DEFENDER IM3 | ||
|---|---|---|
| OS | Safety Check | Provides record of a Pre-Shift Operator Safety Check |
| UT | Utilization | The system will monitor and record vehicle productivity and runtime |
| DEFENDER IM3 POSSIBLE CONFIGURATIONS | |
|---|---|
| IM3 | Standard impact monitoring system with tamper proof data storage, USB and RF Communication to the Base Station |
| IM3-OS | Standard impact monitoring system with operator pre-shift safety check |
| IM3-UT | IM4-UT Standard impact monitoring system with utilization factor data recording |
| IM3-OS-UT | Standard impact monitoring system with both operator pre-shift safety check and utilization recording |
| DEFENDER IM3 CONNECTIVITY | ||
|---|---|---|
| BS-RF | Base Station | USB Recording with excel CVS. formatting |
| BE-RF | Ethernet | Ethernet connectivity to PC with excel CVS. formatting |
| BW-RF | Wi-Fi | Wi-Fi connectivity to PC with excel CVS. Formatting |
| Note: Additional information formats are available please see IVDT Management Reporting or contact a representative | ||
